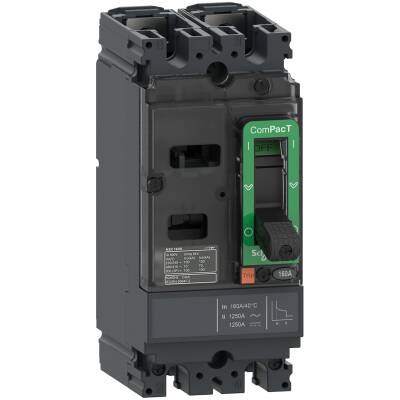

ComPacT NSX 100S is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 75kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 70mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
